Chemical Resistance

Chemical and material compatibility ratings with legends, notes, warnings, symbols, and footnotes.

Open Chart PDF All Technical Resources

Read the rating legend, warnings, and applicable footnotes before using the chart.

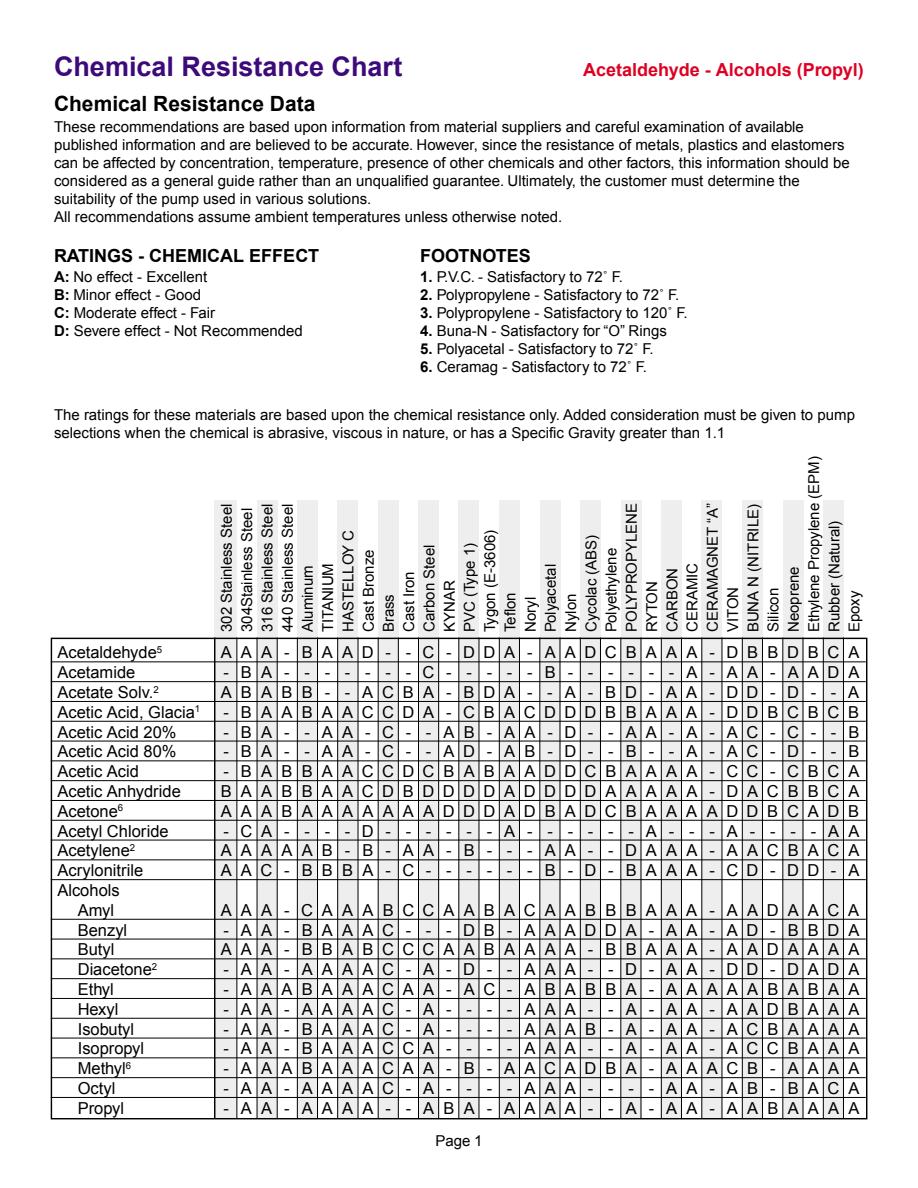

PumpRite Chemical Resistance Chart page 1 of 12 — Chemical Resistance Chart — Page 1 of 12

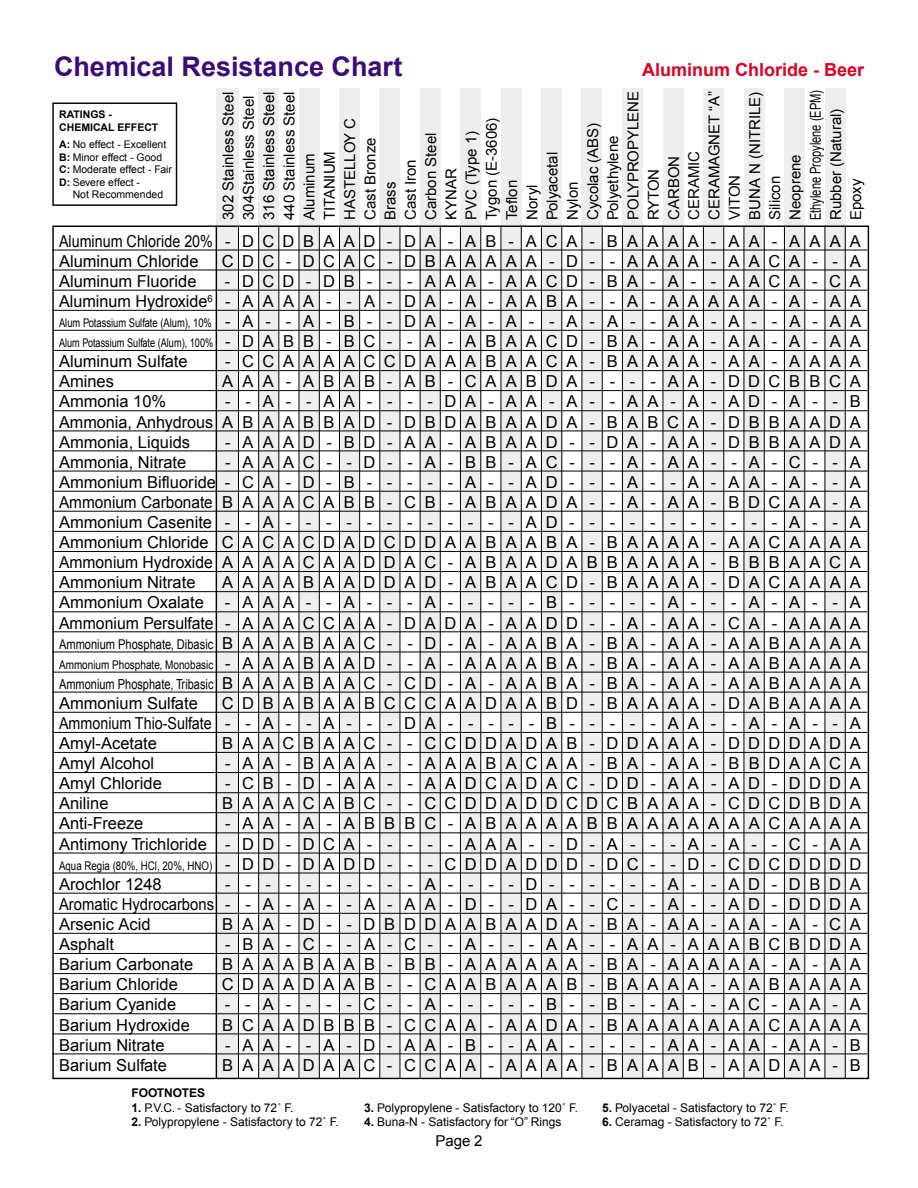

PumpRite Chemical Resistance Chart page 2 of 12 — Chemical Resistance Chart — Page 2 of 12

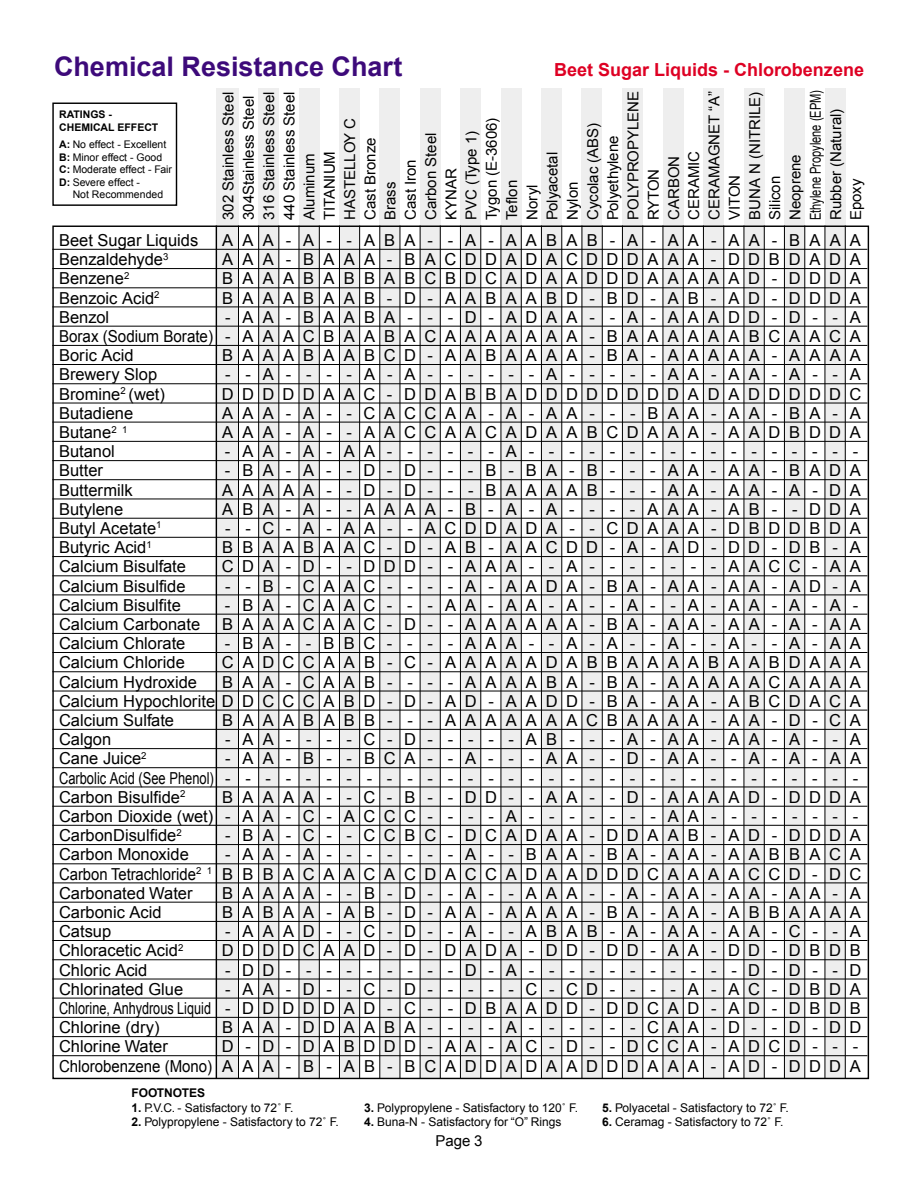

PumpRite Chemical Resistance Chart page 3 of 12 — Chemical Resistance Chart — Page 3 of 12

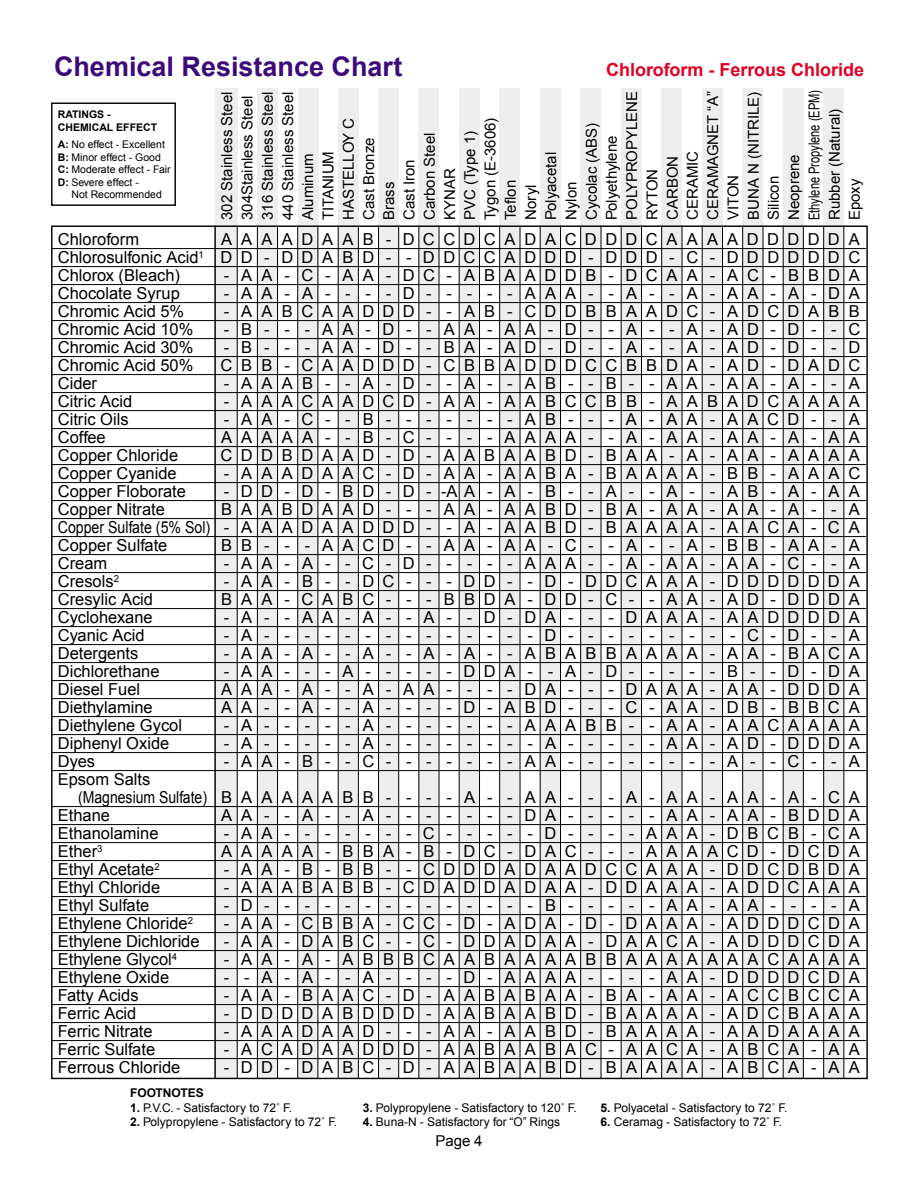

PumpRite Chemical Resistance Chart page 4 of 12 — Chemical Resistance Chart — Page 4 of 12

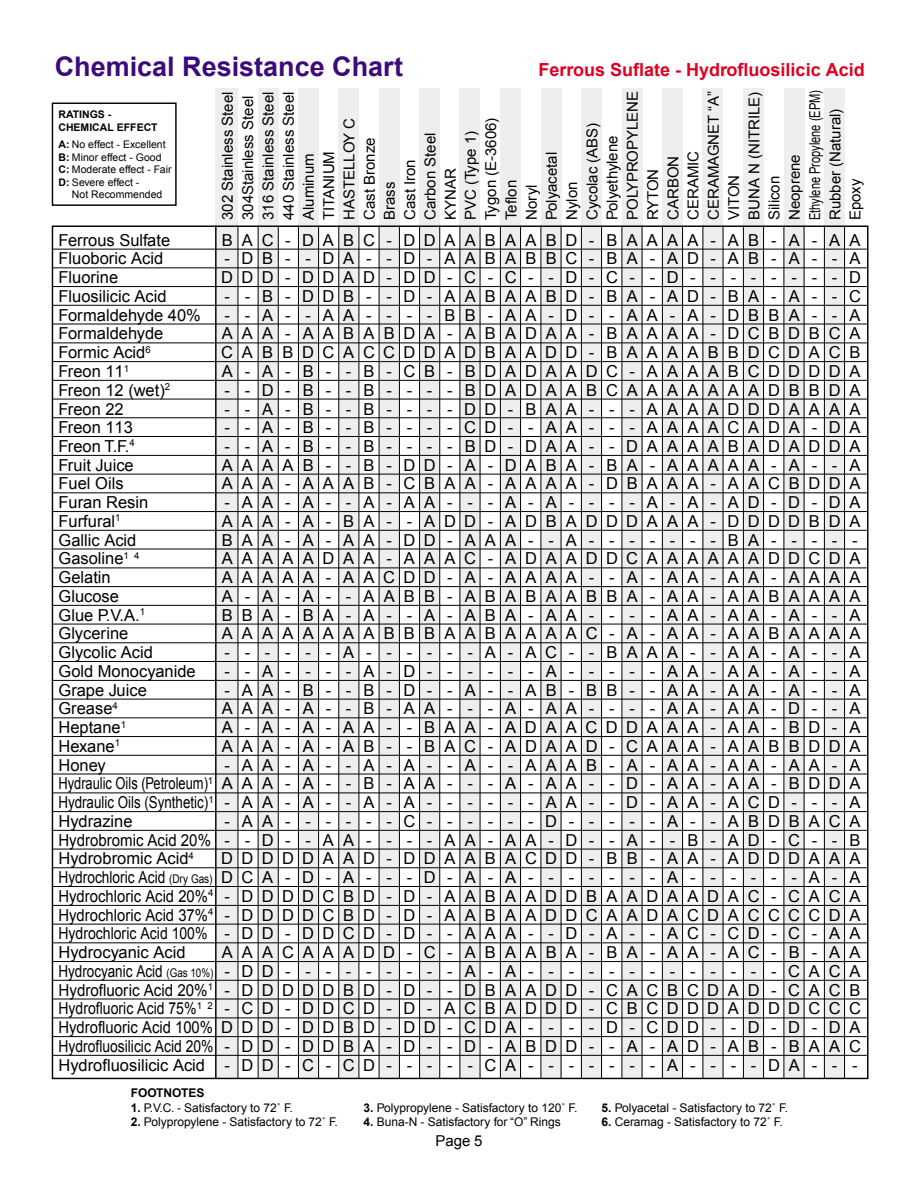

PumpRite Chemical Resistance Chart page 5 of 12 — Chemical Resistance Chart — Page 5 of 12

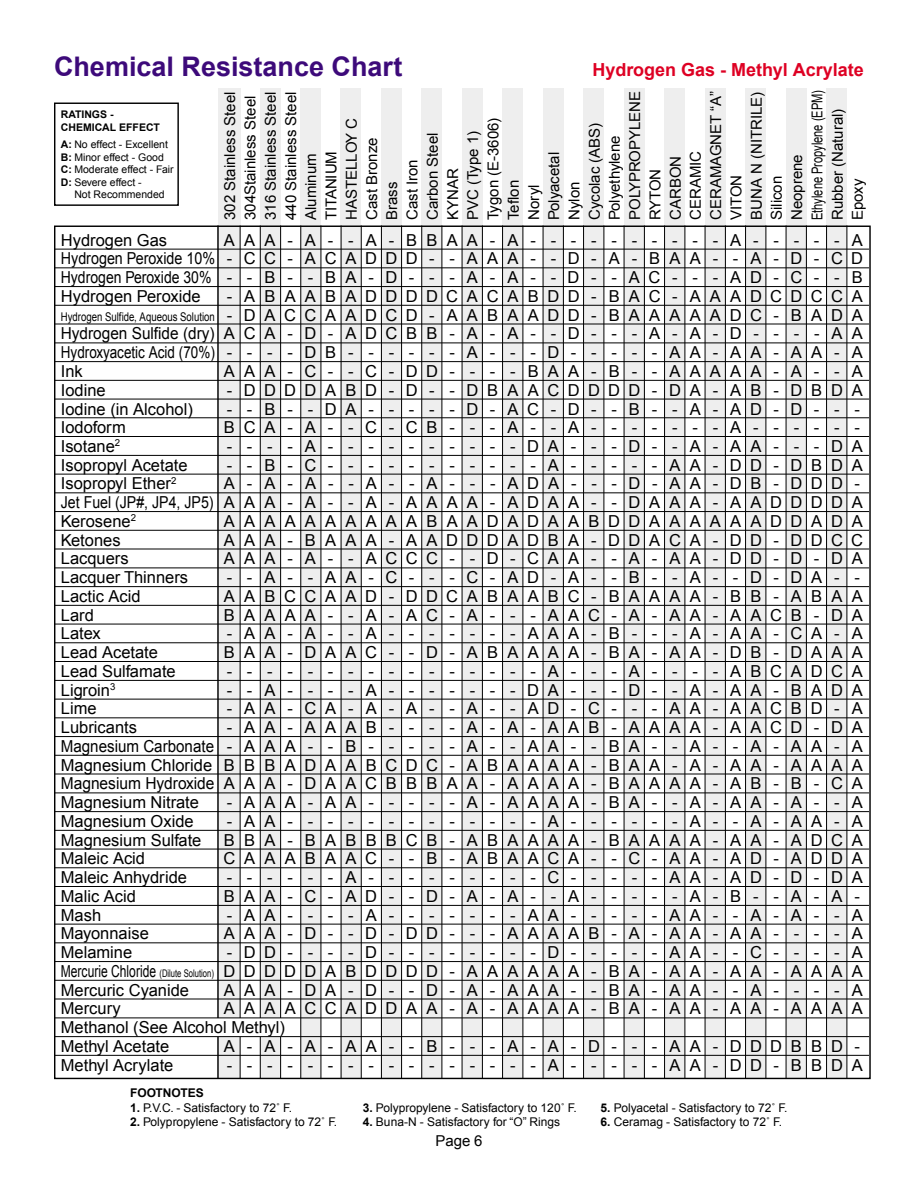

PumpRite Chemical Resistance Chart page 6 of 12 — Chemical Resistance Chart — Page 6 of 12

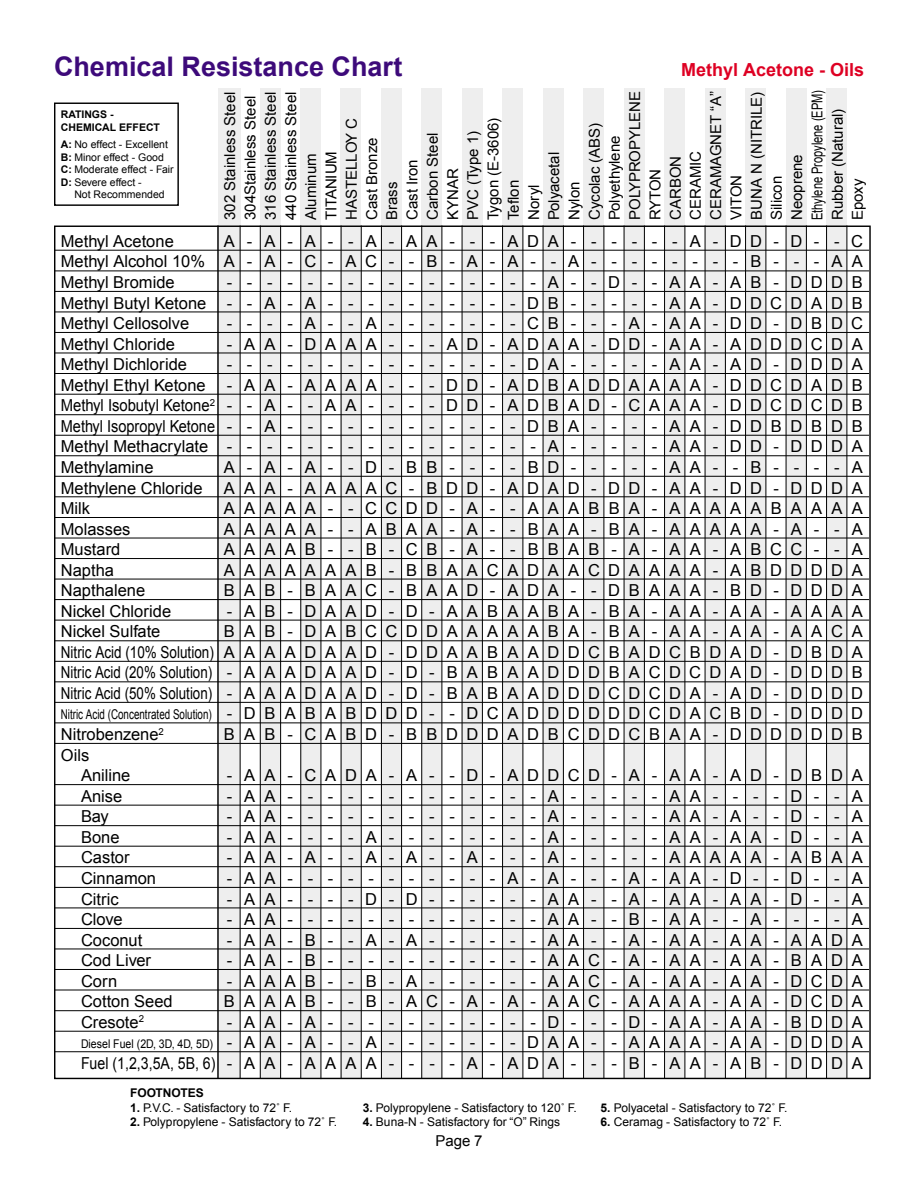

PumpRite Chemical Resistance Chart page 7 of 12 — Chemical Resistance Chart — Page 7 of 12

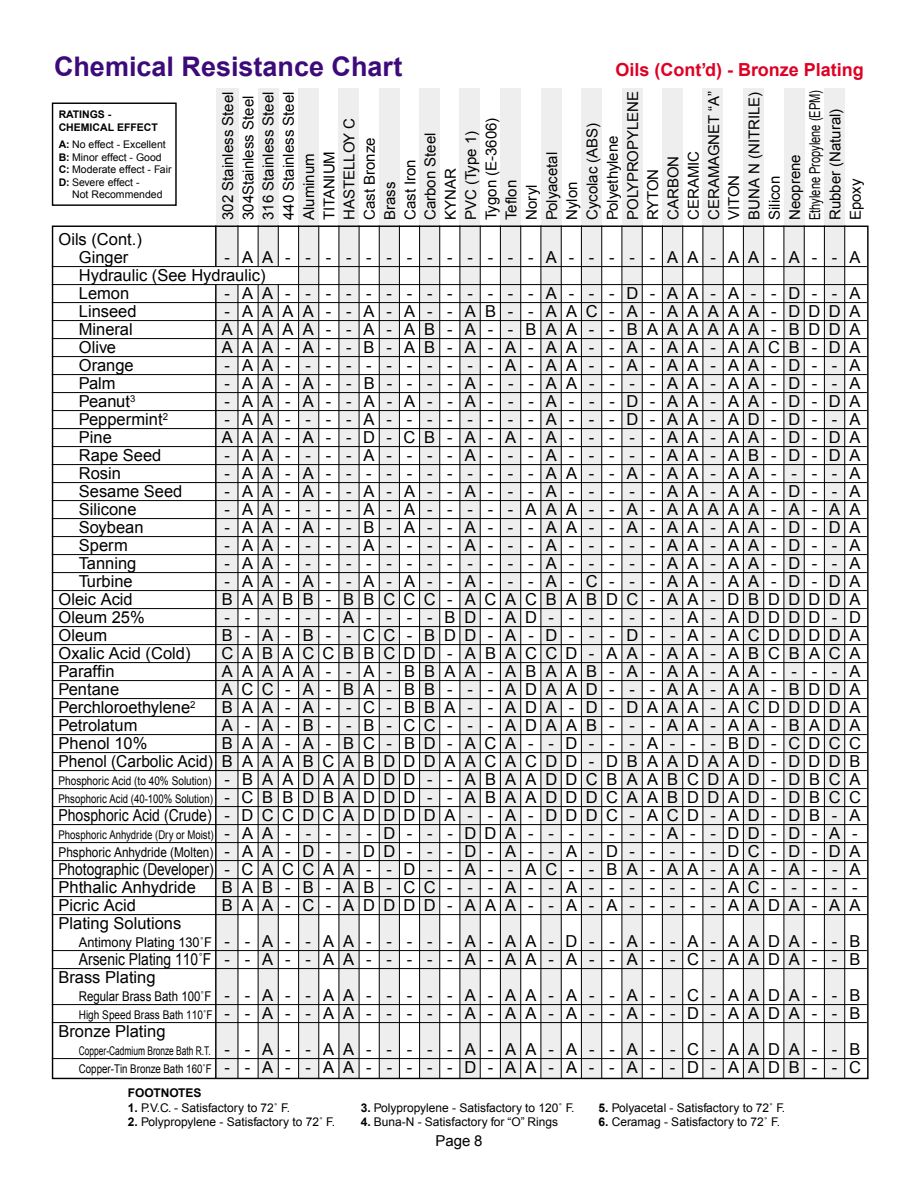

PumpRite Chemical Resistance Chart page 8 of 12 — Chemical Resistance Chart — Page 8 of 12

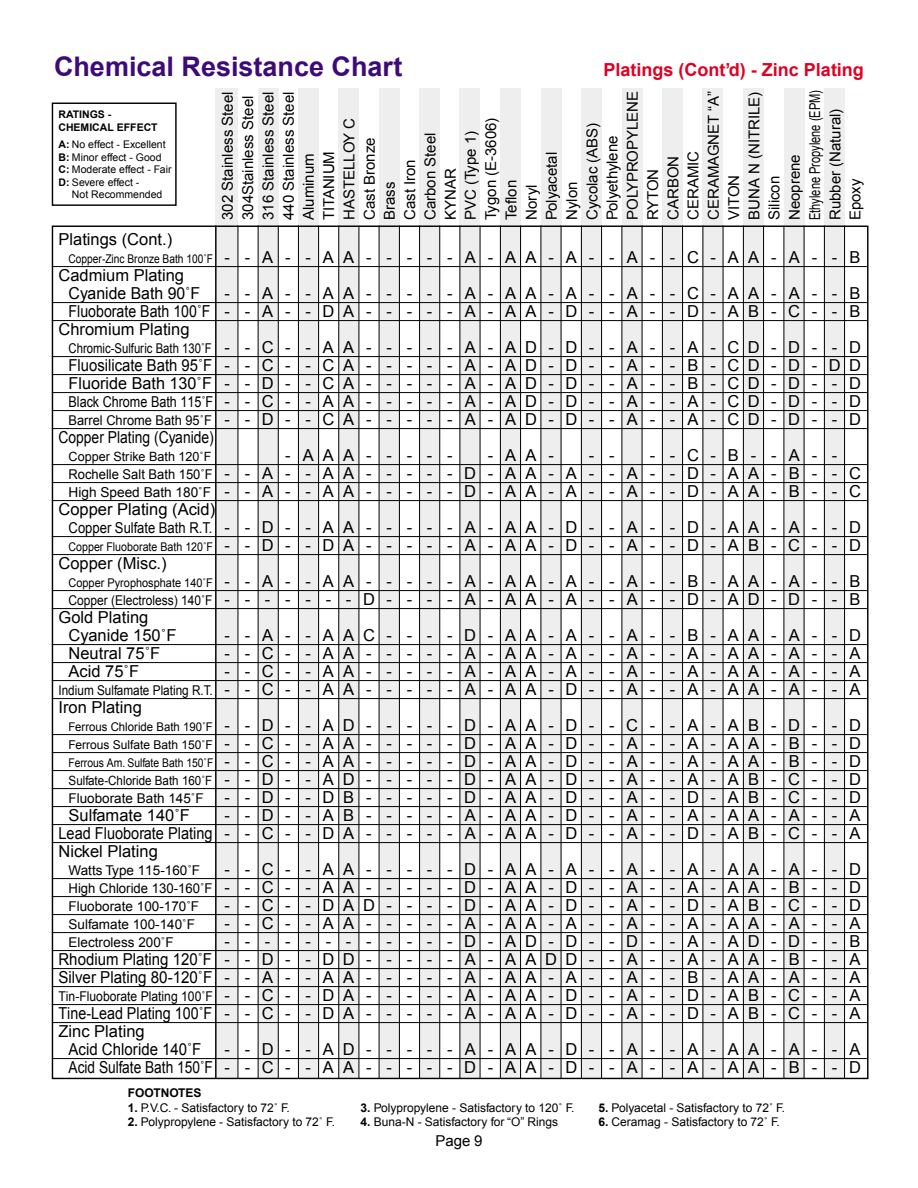

PumpRite Chemical Resistance Chart page 9 of 12 — Chemical Resistance Chart — Page 9 of 12

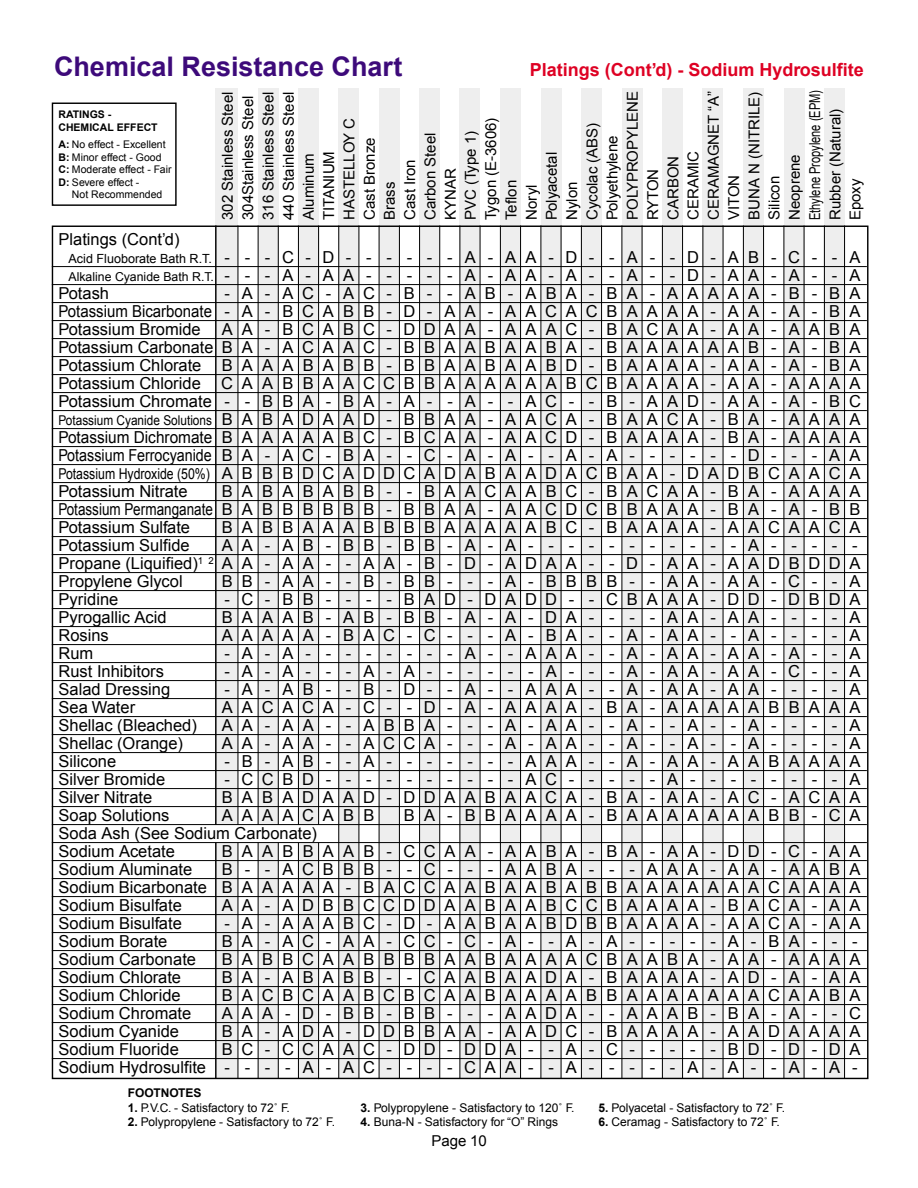

PumpRite Chemical Resistance Chart page 10 of 12 — Chemical Resistance Chart — Page 10 of 12

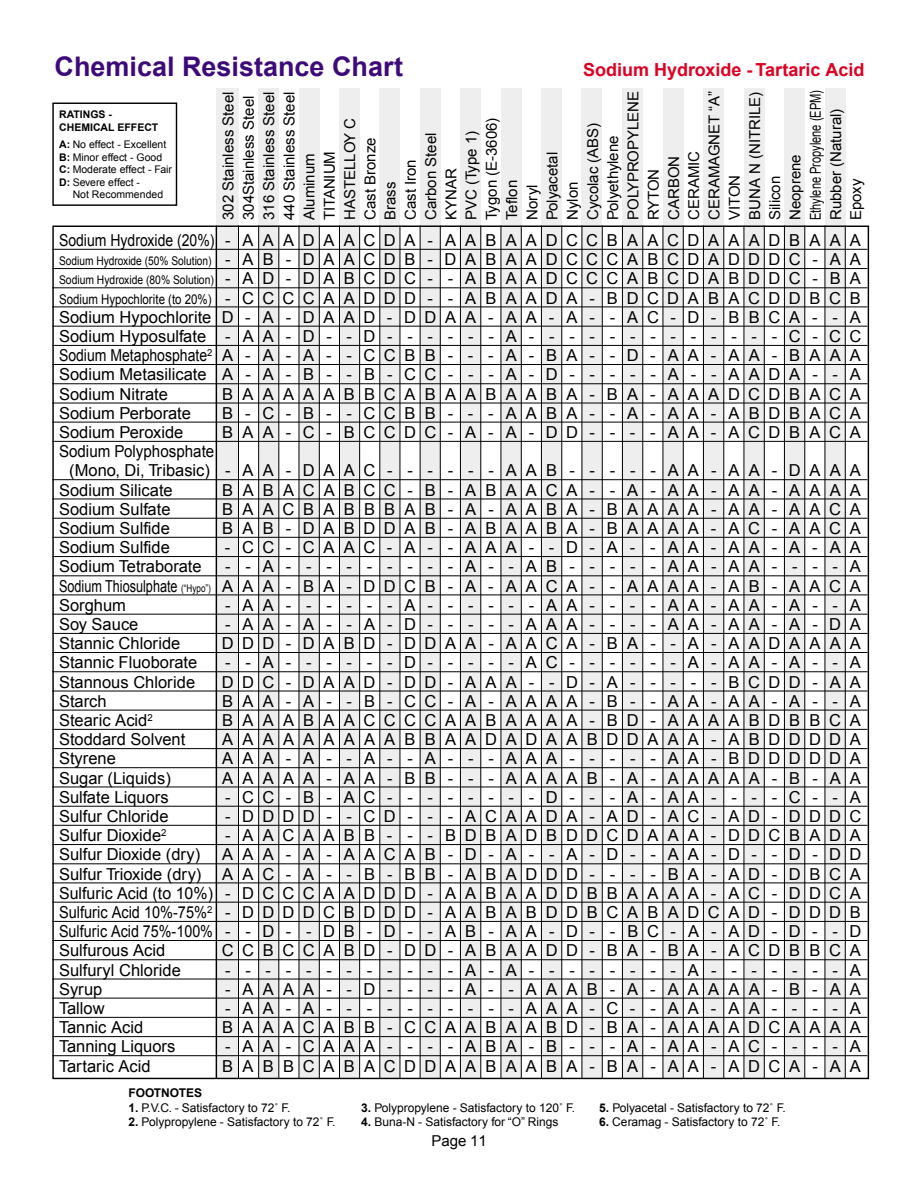

PumpRite Chemical Resistance Chart page 11 of 12 — Chemical Resistance Chart — Page 11 of 12

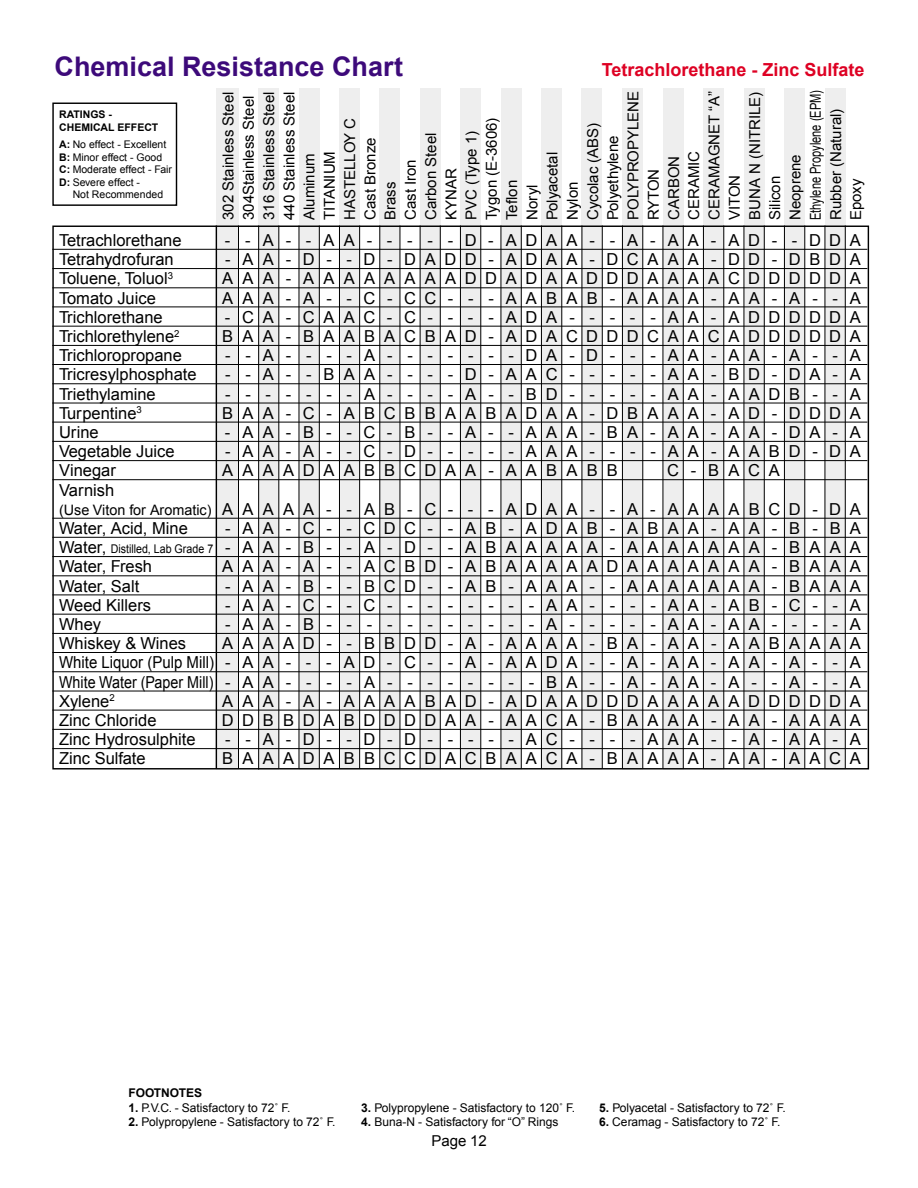

PumpRite Chemical Resistance Chart page 12 of 12 — Chemical Resistance Chart — Page 12 of 12
